Large Custom Injection Mold Base Project

2026-03-18 16:04:34

「Guide」

A custom large injection mold base project, with considerations for plate alignment, guides, assembly and inspection.

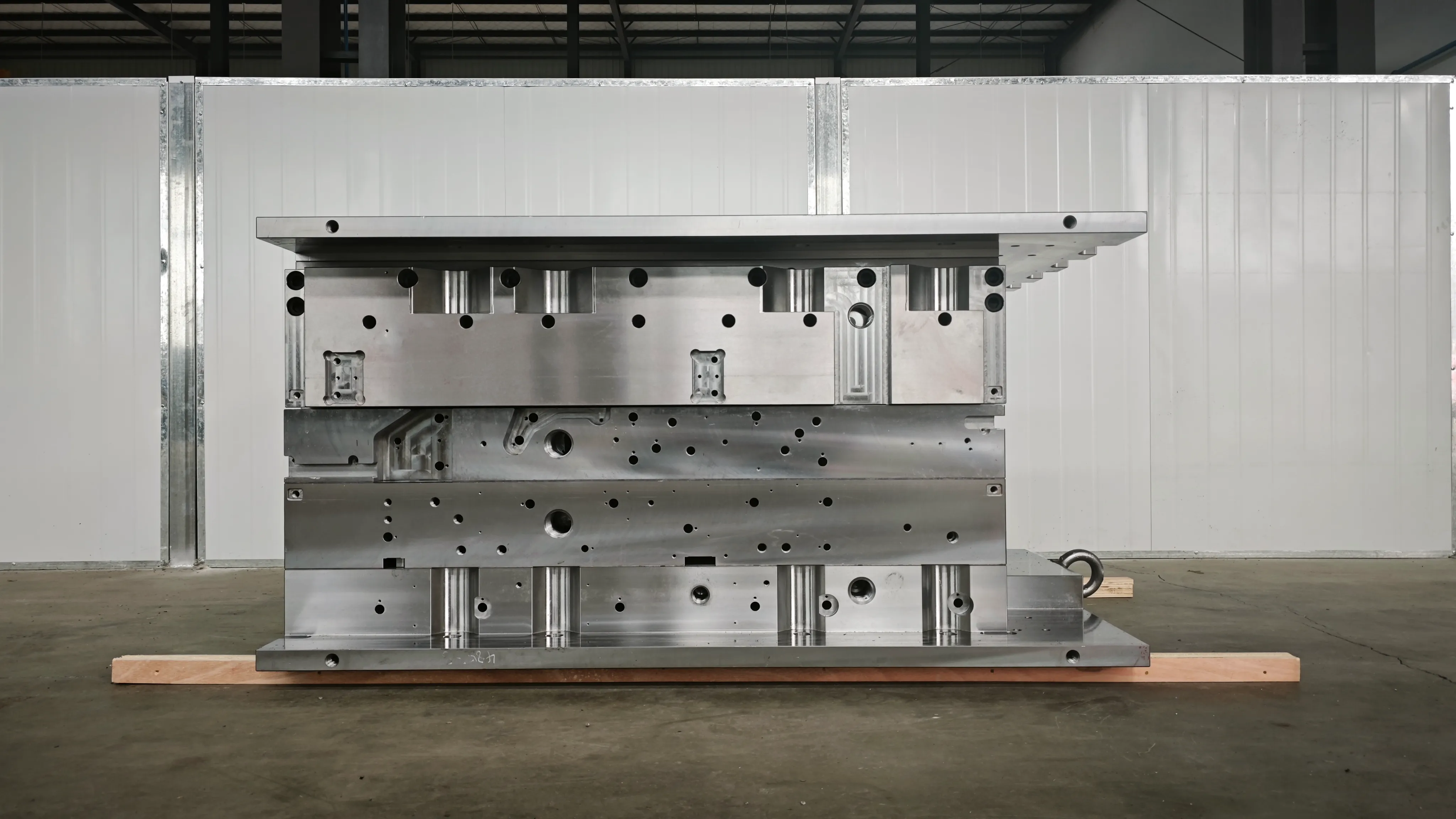

Large custom injection mold base assembly

Large injection mold base project

This example shows a custom mold base for a large injection mold. The plate thickness, machined features and fastening positions were adapted to the mold structure and intended use.

Design and inspection considerations

For a large mold base, drawings should identify datum surfaces, plate alignment, guide interfaces and mounting points. Flatness, squareness and alignment requirements should be specified with their tolerances and inspection criteria. Loads, handling and assembly access are also relevant when reviewing the design.

Discuss your project

Share your drawings, material, dimensions, tolerances, quantity and inspection requirements. Manufacturing scope, inspection method, lead time and shipping terms are confirmed for each project.
